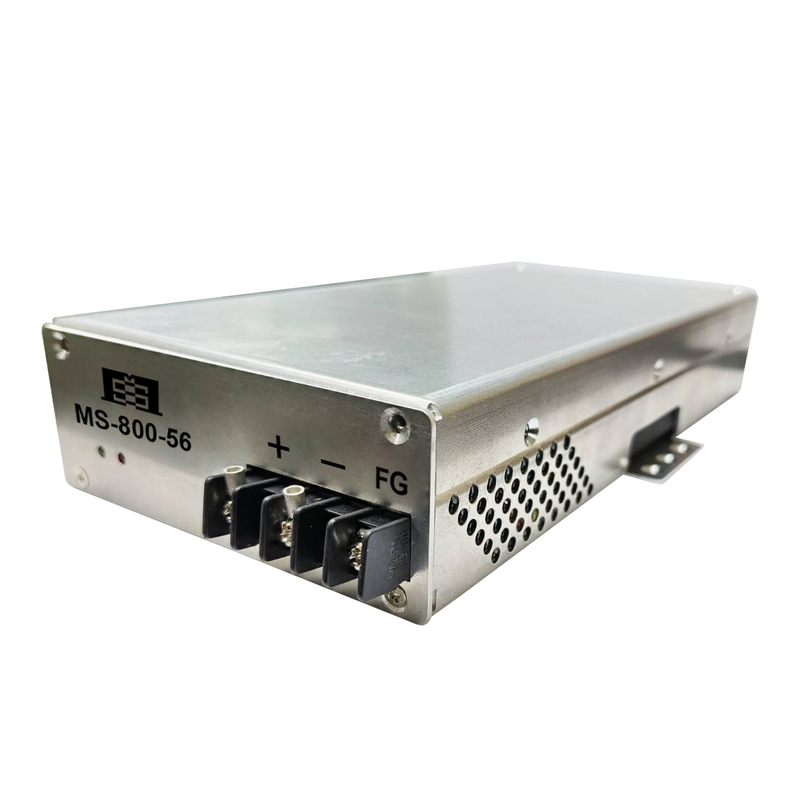

MS-800-56
Store Manager's Choice

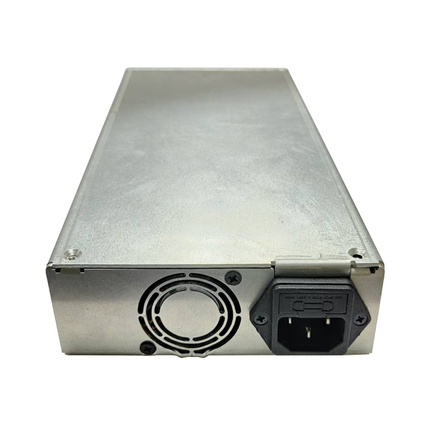

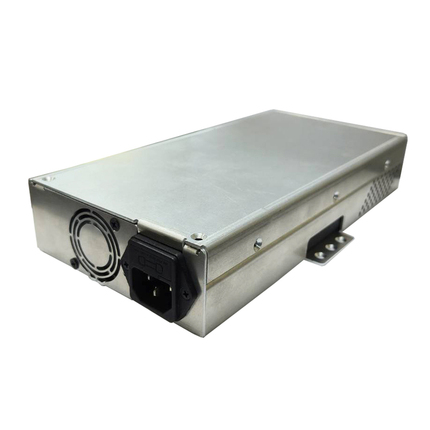

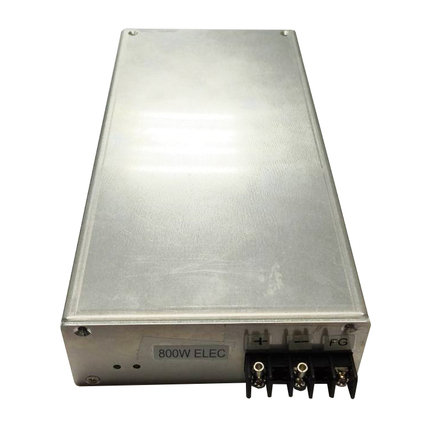

AC/DC 800W POWER SUPPLY with 56VDC output
Introducing the AC/DC 800W POWER SUPPLY with 56VDC output, engineered for industrial-grade applications that require a reliable, high-power 56 V DC source from standard AC mains. This rugged, compact converter delivers 800 watts of continuous power, making it ideal for telecommunications, LED lighting systems, battery charging, robotics, automation, and other mission-critical systems.
Key Specifications/Special Features
- INPUT :
- Input voltage: 100-240VAC
- Input Current : 8.5A @110V F.L, 60Hz / 4.0A @230V F.L, 60Hz
- OUTPUT :
- Output voltage: 56VDC
- Max load: 14.29A
- Power: 800W maximum
- Minimum load: 0.1A
- Load regular percentage: 2%
- Line regular percentage: 1%
- Ripple percentage: 2%
- Noise percentage: 5%
- Total power: 800W
- Protection:
- Short Circuit Protection
- Over Voltage Protection
- Over Load Protection
- Over Temperate Protection
- General description:
- Operating temperature: -40 to +70 ℃
- Storage temperature: -40 to +85 ℃
- Operating humidity: 5 to 95%
- Natural air cooling / 10.1CFM fan
- Dimensions: 241.5 x 140 x 43 (L*D*H) mm
Primary Competitive Advantages
🔧 Key Features🔧
⚡High Power & Stable Output: Provides 800 W continuous output with tight regulation at 56 V DC, ensuring stable performance even under variable loads.
⚡Wide AC Input Range: Supports universal AC input (typically 85–264 VAC, 47–63 Hz), accommodating global power standards.
⚡High Efficiency & Thermal Management: Built-in Active Power Factor Correction (PFC) boosts efficiency to ≥ 90%, reducing energy waste and heat. Operates with a thermostatically controlled fan for optimal cooling.
⚡Robust Protection Suite: Offers full protection—over-voltage, over-current, over-power, over-temperature, and short-circuit shutoff—ensuring maximum system safety.
⚡Industrial-Grade Reliability: Complies with major safety standards (UL, CE, RoHS), and features a rugged metal enclosure with mounting brackets for harsh environments.
⚡Minimal Footprint: Compact form factor DIN-Rail installations or wall mounting, saving valuable space in control cabinets and industrial racks.
⚡High Power & Stable Output: Provides 800 W continuous output with tight regulation at 56 V DC, ensuring stable performance even under variable loads.
⚡Wide AC Input Range: Supports universal AC input (typically 85–264 VAC, 47–63 Hz), accommodating global power standards.
⚡High Efficiency & Thermal Management: Built-in Active Power Factor Correction (PFC) boosts efficiency to ≥ 90%, reducing energy waste and heat. Operates with a thermostatically controlled fan for optimal cooling.
⚡Robust Protection Suite: Offers full protection—over-voltage, over-current, over-power, over-temperature, and short-circuit shutoff—ensuring maximum system safety.
⚡Industrial-Grade Reliability: Complies with major safety standards (UL, CE, RoHS), and features a rugged metal enclosure with mounting brackets for harsh environments.
⚡Minimal Footprint: Compact form factor DIN-Rail installations or wall mounting, saving valuable space in control cabinets and industrial racks.
