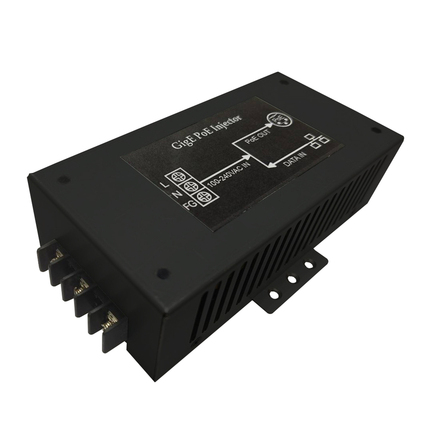

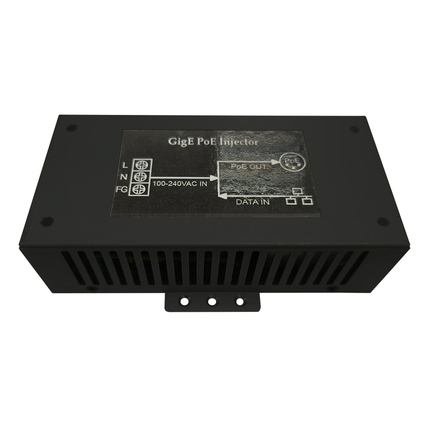

MIT-33GH-56B1N
AC/DC, 1G/5Gigabit PoE Injector with 56VDC 35W 802.3at compliant Output, High Operation Temp -40℃~+70℃
The MIT-33GH-56B1N is MSTronic's high-performance AC/DC, 1G/5Gigabit PoE Injector, specifically engineered for demanding industrial and outdoor networking applications. This single-port midspan injector seamlessly combines power and data over a single Ethernet cable, ensuring reliable operation for high-power devices like PTZ cameras, wireless access points, and remote sensors.
Unmatched Technical Capability: This injector delivers a stable 56VDC 35W 802.3at compliant Output, providing sufficient power headroom for demanding Powered Devices (PDs). Crucially, the unit supports both Gigabit (1G) and 5Gigabit data transmission speeds, future-proofing your network infrastructure.
Built for Extreme Environments: Designed for deployment in harsh conditions, the MIT-33GH-56B1N boasts an exceptionally wide High Operation Temp of -40℃ to +70℃. Its robust design includes comprehensive protection features against short-circuiting, over-voltage, and over-current, adhering to industry-leading EN 62368-1 and EMC standards (CE/FCC).
Proudly Made in Taiwan (MIT), this PoE Injector guarantees superior quality and reliability. It is DIN rail mountable (optional kit available) for easy integration into industrial cabinets.
Elevate your industrial networking reliability. Inquire about the MIT-33GH-56B1N today!
Unmatched Technical Capability: This injector delivers a stable 56VDC 35W 802.3at compliant Output, providing sufficient power headroom for demanding Powered Devices (PDs). Crucially, the unit supports both Gigabit (1G) and 5Gigabit data transmission speeds, future-proofing your network infrastructure.
Built for Extreme Environments: Designed for deployment in harsh conditions, the MIT-33GH-56B1N boasts an exceptionally wide High Operation Temp of -40℃ to +70℃. Its robust design includes comprehensive protection features against short-circuiting, over-voltage, and over-current, adhering to industry-leading EN 62368-1 and EMC standards (CE/FCC).
Proudly Made in Taiwan (MIT), this PoE Injector guarantees superior quality and reliability. It is DIN rail mountable (optional kit available) for easy integration into industrial cabinets.
Elevate your industrial networking reliability. Inquire about the MIT-33GH-56B1N today!
Key Specifications/Special Features
- INPUT :
- Input voltage: AC 100V ~ 240V
- Input current: 0.86A at 100Vac @F.L ; 0.38A at 240Vac @F.L
- Input Frequency: 50 ~ 60hz
- Inrush current: 25A Max at 120Vac & 50A Max at 230Vac
- OUTPUT :
- Output voltage and current: +56V
- Max load: 0.625A
- Power: 35W maximum
- Minimum load: 0A
- Load regular percentage: 5%
- Line regular percentage: 1%
- Ripple percentage: 1%
- Noise percentage: 2%
- Total power: 35W
- Ripple & Noise bandwidth is from DC to 20Mhz.
- Terminated With a 47uF Capacitor and 0.1uf MPE Capacitor of Proper Polarity.
- Efficiency: 85% min. at AC 100V ~ 240V Input @F.L
- Protection:
- Short-circuit protected
- Output Short GND Terminal will not damage the Power Supply
- Auto Recover when Load status going to normally
- Over Voltage Protection : 59V ~ 63V
- Over Current limit: 802.3at Limits(~ 0.71A) @100V ~ 240Vac
- Input with Fuse Protection
- EMC Standard: CE EN55032/EN55035 FCC Part 15 Supart B
- SAFETY STANDARD : EN 62368-1
- General description:
- Operating temperature: -40 to 70 degree Celsius
- Storage temperature: -40 to 85 degree Celsius
- Operating humidity: 5 to 90%
- Free air cooling
- Size: 146*74*42 mm (L)*(W)*(H)
- DIN rail mountable by clip kit (option)
- RJ45 Pin Assignment： @1000/5000M

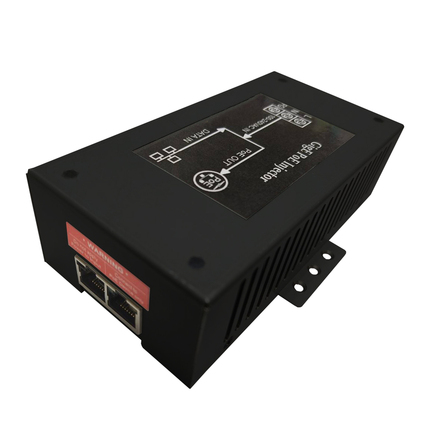

- RJ-45 input (data only) and RJ-45 output (data & power)
- Indicator:
- LED light on RED indicates PWR ready.
- LED light on GREEN indicates POE output OK to 802.3at or 802.3af PD
